Our Block Paving Installation Process


Paving blocks come in many styles and the block paving can be laid in various styles. We believe in offering our customers as many choices as possible when it comes to choosing the color, outlook and design layout of their new driveway, patio or paths.

This is why we offer actual samples of the block paving so you can choose the one that you feel would best suit your surroundings. Of course, we can help you with that choice and give you the pro’s and con’s of such a choice. We believe when it comes to laying a new driveway with block paving, we are the number one choice for block paving in Abingdon.

Site Preparation
All our block paving is laid on a firm, level and well drained base to ensure long term service and stability, getting the ground work right is essential.
Old base or driveway, vegetation and top soil is removed to an approximate depth of 200mm-250mm across the area to be paved. We mark out this area with pegs or retaining boards and adjust their height to the required finished surface levels, ensuring that we allow a fall of 1:80 away from any buildings and walls for surface drainage.

We also make sure that the finished paving surface level is at least 150mm (two brick courses) below the level of any damp proof course. After excavation, we rake level to ensure an even depth and compact the whole area using a plate compactor.

Edge restraints (if required)
The next stage is to set up edge restraints around the area to be paved (these may include existing walls) using block kerbs or concrete edging. The kerbs or concrete edgings are bedded into 100mm of concrete, to the required level, with a 45 degree haunch up the side of at least half the block or kerb height. This is essential to prevent the blocks and the sand on which they are laid from moving.

Underground drainage, ACO drains or similar drainage including inspection chambers are installed at this stage if required.
The area is then to be back filled with 150mm of crushed stone, compacted to 100mm.

Onto this, a layer of river washed sand or grit is applied, to the depth of 50mm, and then compacted with a plate compactor. A second layer of grit / sand is then applied, to a depth of 20mm. This second layer of sand is leveled to the correct falls.

Laying – the block pattern
The laying of concrete block paving should always begin from the bottom of any slope, preferably starting from a right angle or a straight edge. Working from several packs at a time is essential when using a mixed size product such as cobble styled paving blocks.

We place the blocks on top of the laying course, ensuring they are around 4-5mm above the desired finished level. Once all full blocks are laid, we use a mechanical block splitter or a Con-saw to cut the blocks required for the infill pieces or at the retaining edges. Once completed, we sweep the area and compact with two or three passes of the plate compactor.

Jointing of the block paving is preferably completed in dry periods. We apply kiln dried sand to the block paved area, then brush into the joints using a soft brush, ensuring the joints are filled fully.

Finishing the job
We use the plate compactor on the paved area again, to push the sand into the joints. Once this has been done, we check for any gaps in the jointing and fill where necessary, compacting again afterwards if needed. The sand in the joints may need to be topped up for the first few months after the job is completed.

Get a free quotation now on having block paving laid on your driveway in Abingdon. Call the experts at Abingdon Paving for a free no obligation quotation. We are a registered and insured contractor for the Abingdon area.

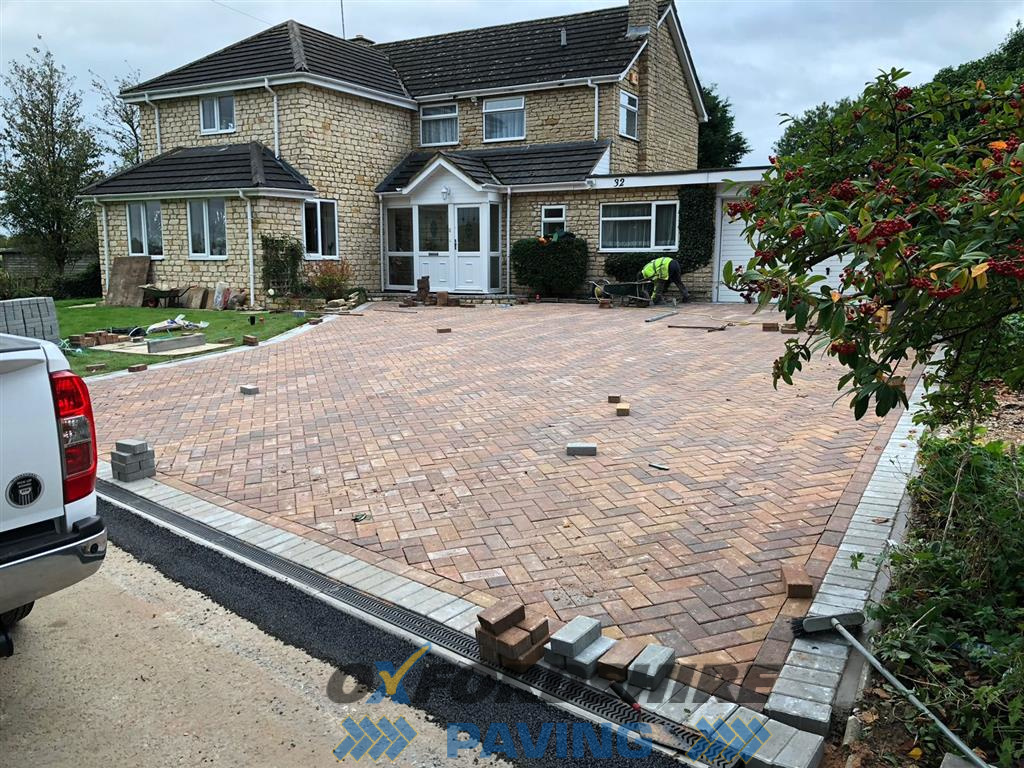

For examples of the block paving installations we have carried out, visit our block paving gallery. Need help, advice or a free quote, please get in touch.
